    Safety Automatic Assembly Equipment , CNC Sealing Surface Valve Assembly Equipment

    Ask Lasest Price
    Brand Name : Panmao
    Model Number : FMJG
    Price : USD+15000+pcs
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10+pcs+per day
    Delivery Time : 15days
    • Product Details
    • Company Profile

    Safety Automatic Assembly Equipment , CNC Sealing Surface Valve Assembly Equipment

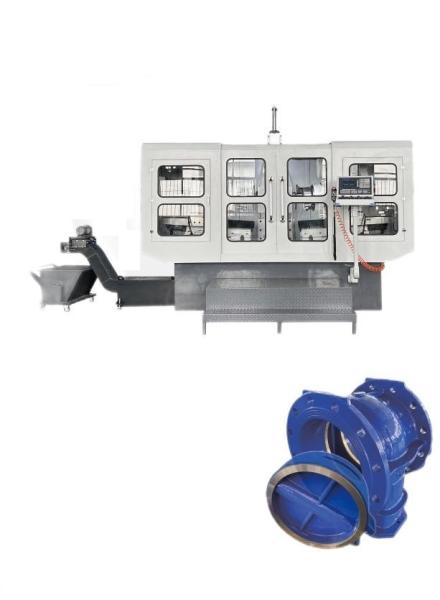

    Large CNC sealing surface processing machine

    Product introduction
    1. Adopting wide number of dual-channel CNC system, industrial field bus communication mode, support parameters online configuration, servo status real-time monitoring;
    2. Power head structural design: original design of the centre of gravity of the tool-walking skateboard, bevel angle precision fixed structure, eliminating the vibration generated by structural eccentricity, ensuring that the angular error of the left and right machining surfaces: 5"; Roughness RA
    0.4MM; contact surface: more than 90%, no gas leakage;
    3. Unique tool holder design, able to install the market standard tool for product cutting, high stability of the equipment, durable; debugging and easy to operate, can process all kinds of large and small gate valve products.

    (1) Processing object: hard gate valve body/hard gate valve plate
    (2) Processing range: gate specifications DN300-600
    (3) Processing material: ductile cast iron / brass
    (4) Workstation Distribution: Workstation Distribution: left one workstation, right one workstation; a total of 2 power head: servo spreading knife power head + servo sliding table
    (5) Hydraulic system working pressure: 4 Mpa
    (6) Machine power: about 44Kw
    (7) Total weight of the machine: about 13T
    (8) Floor space: about 2.8X4.5m2
