Compact Static Gantry Friction Stir Welding Machine Friction Stir
Welding Technology
Small static gantry friction stir welding equipment is a kind of
solid phase welding equipment developed based on friction stir
welding technology. It has unparalleled advantages in welding
materials such as aluminum, magnesium, copper, etc. It can realize
straight line and two-dimensional curve stir friction welding, and
is suitable for heat sinks, Heat sinks, motor cases, motor
controllers, battery trays and other parts production and
scientific research. Various shapes of stirring heads, automatic
clamping systems, auxiliary clamping automatic clamping system,
auxiliary compression device, automatic seam tracking system and
complete welding process.
Technology Parameters:
Tips:
Friction stir welding (FSW) is a new solid-state welding method. A
rotating tool with
a specially designed pin and shoulder is inserted into the
workpiece to be jointed and
traverses along welding direction, through heat produced by
friction and plastic work.
And the soften material was extruded by the shoulder, thereby the
high quality joints
are achieved under the thermal-mechanical action.

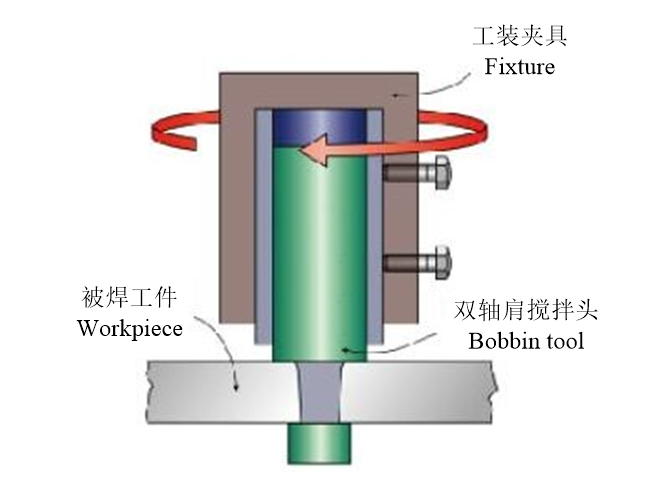

Bobbin Friction Stir Welding (BFSW) is a new type of friction stir
welding technology based on the improvement of single-shoulder
stirring head. It can simultaneously weld the upper and lower
surfaces of the workpiece It can simultaneously weld the upper and
lower surfaces of the workpiece, effectively eliminating problems
such as imperfections or root defects, simplifying the welding
clamping requirements and expanding the application of friction
stir welding technology. It provides a new way to simplify the
welding fixture requirements and expand the application of friction
stir welding technology.
Stationary Shoulder Friction Stir Welding (SSFSW) SSFSW is a newly
developed friction stir welding technology. It adopts the split
design of the shoulder and stirring needle, and the stirring needle
rotates when welding. When welding, the stirring needle rotates,
and the shoulder just slides on the specimen surface without
rotating. The surface of the static shoulder friction stir weld
head is The surface of static-shoulder friction stir welding head
is smooth and clean, without arc lines and flying edges, and it can
optimize the temperature gradient in the direction of the thickness
of the joint and reduce welding deformation, which is suitable for
thick plates and fillet welds. Applicable to thick plates, fillet
welds and titanium alloys and other materials with low thermal
conductivity welding, in aerospace, It has a broad application
prospect in aerospace, rail transportation, shipbuilding and other
fields.
This Welding Technology is wildly used the following industry:
COMMUNICATION ELECTRONICS
inned radiator by air cooling (linear friction stir welding)
Liquid-cooled radiator (2D friction stir welding)
welding of Heat sink,soft,connection, sensor, chassis
AUTOMOTIVE
Battery tray of new energy automotive
Motor shell of new energy automotive
Battery box of new energy automotive
Motor controller of new energy automotive
Heat sink box of new energy automotive
Aluminum alloy
hub, hanged arm, chassis parts, rear door, hood, foam aluminum top
cover
SHIPBUILDING INDUSTRY
RAILTRANSPORT
AERONAUTICS ANDASTRONAUTICS
In addition, the workbench size of friction stir welding machines
can be provided
customized according to customers' requirement.
